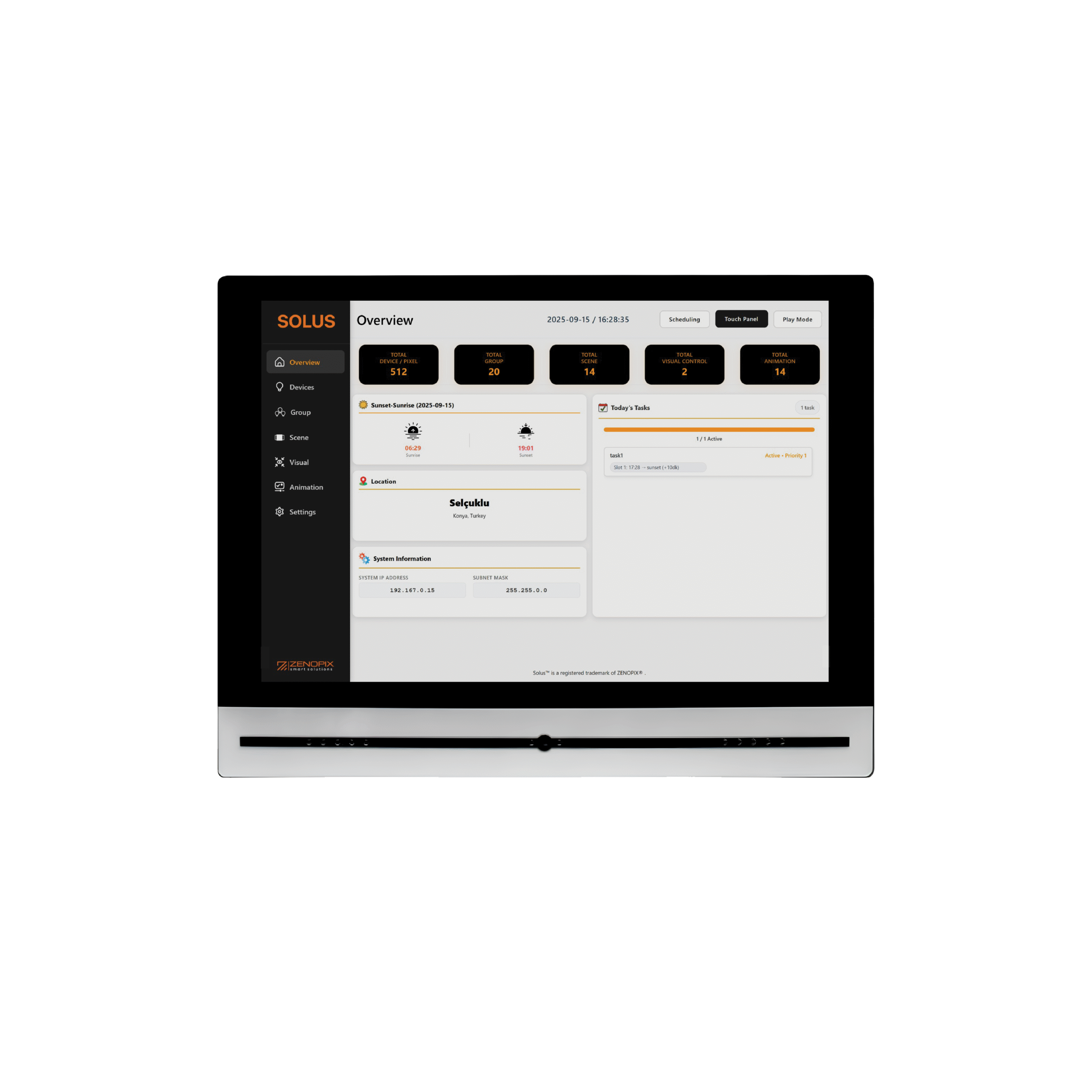

Touch Panel Master Controller systems make a huge difference in the world of lighting by bringing control to your fingertips. The Zenopix Solus completely changes the standards of architectural lighting management. This professional device combines the power of the Art-Net protocol with an intuitive interface. Thus, it allows you to establish full control over every point in your projects. Moreover, it completely eliminates the need for computer systems in the field. In professional projects, this system significantly accelerates your entire workflow.
The Zenopix Solus offers users high processing speed with the 8-core processor at its core. Additionally, its 4 GB RAM capacity successfully manages the most intense data traffic. Furthermore, 32 GB of storage space provides the user with a large digital workspace. This Touch Panel Master Controller operates without stuttering even in massive projects with its 128 Universe capacity. Consequently, its 10.1-inch high-resolution screen provides the user with a clear field of view. The technical advantages offered by the device are as follows:
Pixel Control: Controls fixtures at the pixel level via Art-Net.
Flexible Channel: Offers different options from dimmer control to RGBW color management.
Fast Grouping: Groups pixels and starts complex scenarios with a single touch.
Advanced Connectivity: Provides uninterrupted data flow with dual-band Wi-Fi and Gigabit Ethernet.

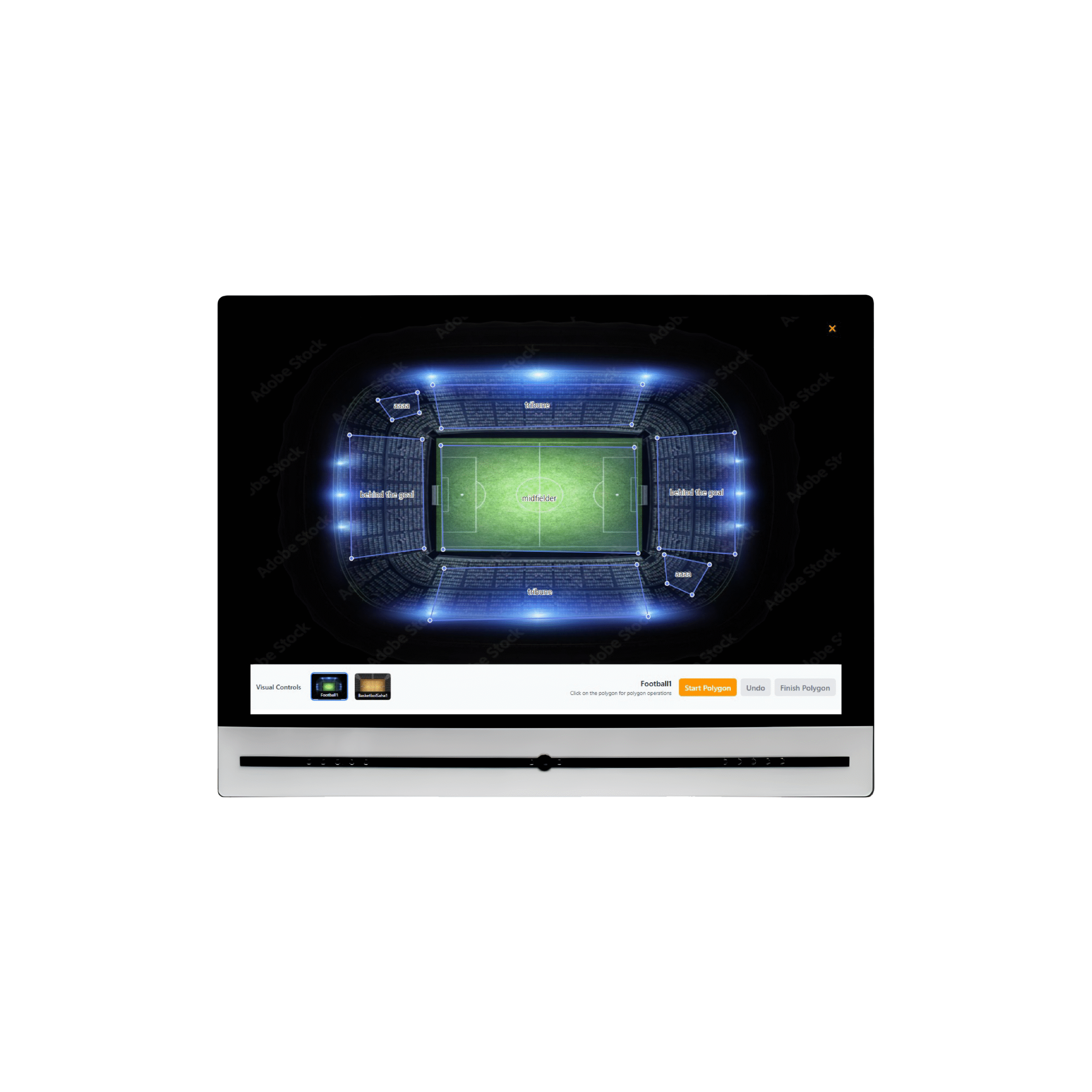

New Generation Lighting Solutions and Application Areas This special device quickly saves animations you prepare with Zenopix NEO software. In this way, managing building facades becomes very easy for technical teams. The panel, which has an IP20 protection class, perfectly adapts to modern control rooms. Especially in professional stage shows and permanent architectural lighting, this Touch Panel Master Controller undertakes the duty of a central management unit. Its structure compatible with DMX512 Communication protocols speeds up integration into existing systems.
Why Should Zenopix Solus Be Preferred? In summary, Zenopix Solus is not just a screen, but a smart control center. Because its one-touch stage management features lighten the burden on operators. If you are looking for a professional experience in your projects, this Touch Panel Master Controller saves you time. Thanks to this technology, you carry your lighting performance to the highest level. You can make the most efficient choice for your project by examining our other Zenopix Master Controller models.
| Processor | Rockchip |
| Processor Model | RK3576 2.2 GHz, 8-Core |
| RAM | 4 GB LPDDR4 |
| Storage | 32 GB eMMC |
| Display Size | 10.1″ |
| Display Resolution | 1280 × 800 |
| Wi-Fi | 2.4 GHz / 5 GHz |
| Touch Type | Capacitive Touchscreen |
| Power Supply | 12V DC, 3A |
| Power Consumption | 36W |
| Protection Rating | IP20 |
| USB | 2 × USB 2.0 |
| Lighting Protocol | Art-Net |
| Art-Net DMX Universe Count | Up to 128 Universes |
| Channel Count (Per Universe) | Up to 1024 Channels |
| Network | 100/1000 Ethernet (RJ45) |
| Dimensions | 289 × 220 × 36 mm (5 mm protrusion when wall-mounted) |
| Operating Temperature | -20°C to 70°C |
