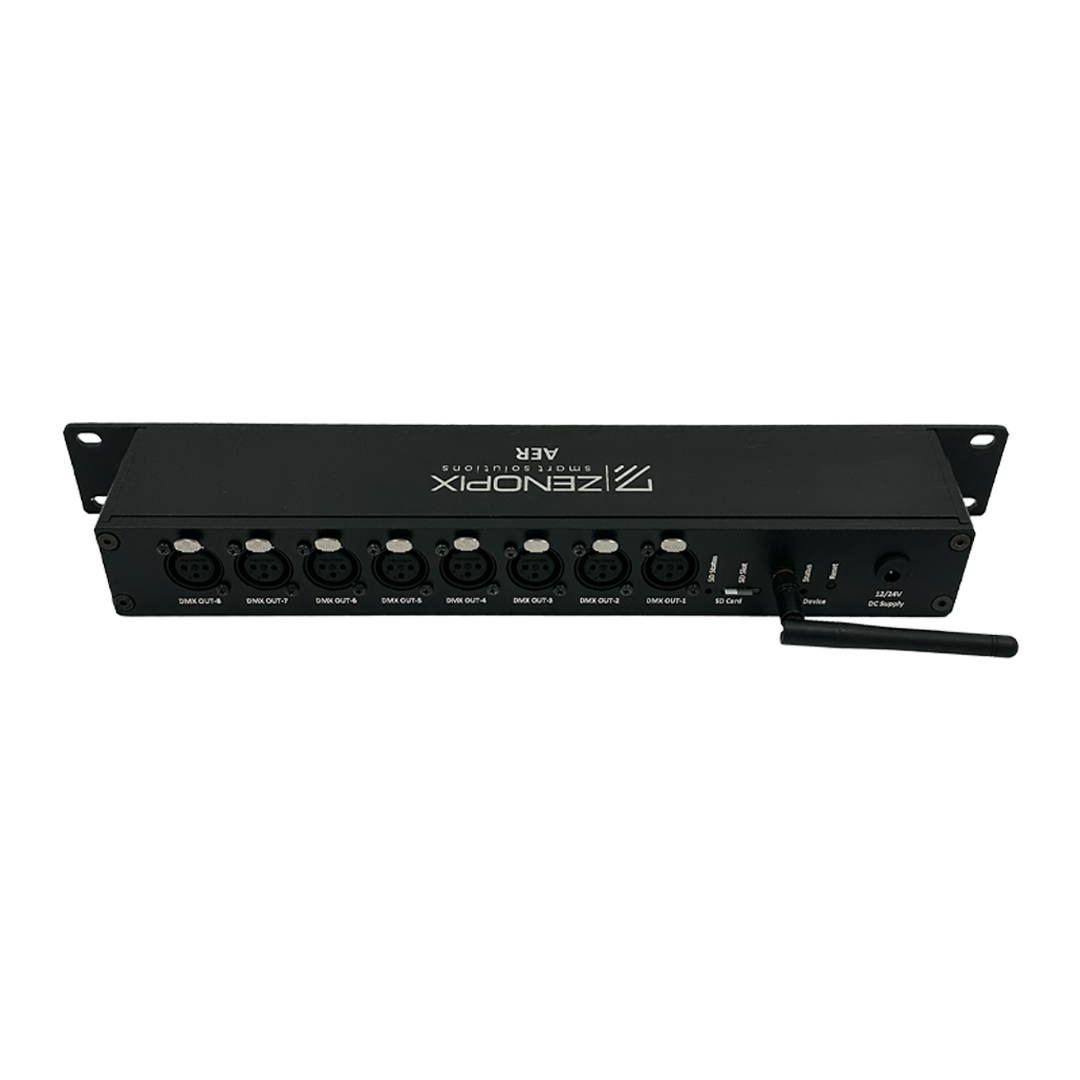

Aer 8 XLR DMX SPI Master Controller

DMX Master Controller systems provide high flexibility and independence in modern lighting projects. The Zenopix Aer 8 XLR completely eliminates the necessity of carrying a computer on stage or in architectural applications. This professional device offers simultaneous playback in 8 different universes by saving animations directly to a Micro SD card. Thus, it ends the need for complex cable layouts or high-cost software. In a professional lighting project, this DMX Master Controller safely coordinates the entire data flow.

The Zenopix Aer offers its users a web-based management interface. This allows you to configure the device in seconds via Wi-Fi. It is also possible to include the unit in the network both as an access point (AP) and in station mode. Additionally, the 8 XLR female Neutrik connector structure ensures the highest quality data transmission. This professional DMX Master Controller demonstrates superior durability in harsh field conditions with its aluminum body. Moreover, the 12-24V DC wide supply range provides full compatibility with all kinds of energy infrastructures. The technical advantages offered by the device are as follows:

  • Eight Universe Output: Creates a large-scale control area with a total of 8 output ports.

  • SD Card Support: Plays animations directly on the device without the need for a computer.

  • Web Control: Manages all Art-Net and DMX settings live via Wi-Fi.

  • Recording Capacity: Records and transfers animations to memory with Art-Net Recorder software.

Professional Solution for Stage and Architectural Lighting This special DMX Master Controller is one of the most powerful solutions for LED animation control without a computer. You can specifically choose the SD card-based playback feature to avoid being affected by speed limitations on Wi-Fi networks. At the same time, in addition to rail-type mounting, cabinet or wall mounting options facilitate installation. You can increase your system stability by learning more about the DMX512 Communication protocol.

Why Should Zenopix Aer Be Preferred? In summary, the Zenopix Aer successfully undertakes the task of being the main playback center of your system. Because it allows you to manage thousands of channels from a single point with a single device. If you are looking for speed and reliability in your projects, this unit saves you time. Zenopix technology helps you keep your lighting network under control at all times. You can complete your project by examining our other Zenopix Master Controller products.

Product Code ZENOPIX AER 8 XLR
Power Input 12–24V DC Terminal Block or Adapter
Power Consumption < 5 W (Under Normal Operating Conditions)
Network Protocol Wi-Fi Based Art-Net Playback
SD Card Based Playback
DMX512 8 × 1024 DMX Channel Outputs
Output Ports 3-Pin Female XLR (NEUTRIK)
Network Connection Type Wi-Fi
Status Indicators 3 × Status LEDs
Enclosure Aluminum
Dimensions 483 × 82.5 × 45 mm (L × W × H)
Operating Environment 0°C to 55°C / 20% RH
Storage Environment -25°C to 75°C / 70% RH
Protection Rating IP20
Mounting Cabinet Mounting or Wall Mounting
